Thermal power generation project of 15MW unit in a thermal power plant in Henan
In modern thermal power generation, due to the particularity and complexity of the production process and equipment operation, the equipment components are in the state of overload fatigue operation for a long time, which greatly increases the frequency of equipment maintenance and replacement. In the long run, it can not guarantee safe and efficient production, but also increases the cost of equipment maintenance and operation of enterprises. Therefore, it is of great significance to monitor the operation status of key equipment.
Taking 135MW steam turbine unit as an example, the following figure is the schematic diagram of TSI measuring point configuration and sensor installation position

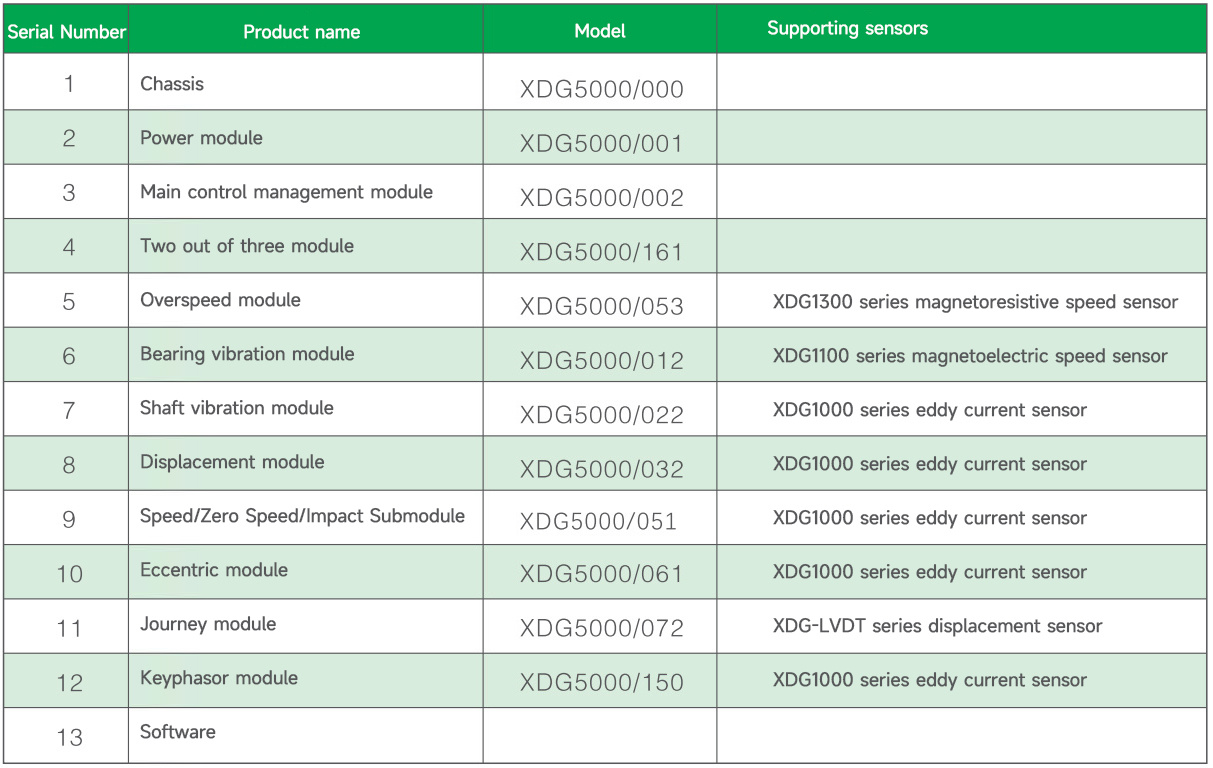

According to the detection requirements of the on-site steam turbine generator unit, the system configuration is as follows:
